MiHPT ( MIP with HPT)

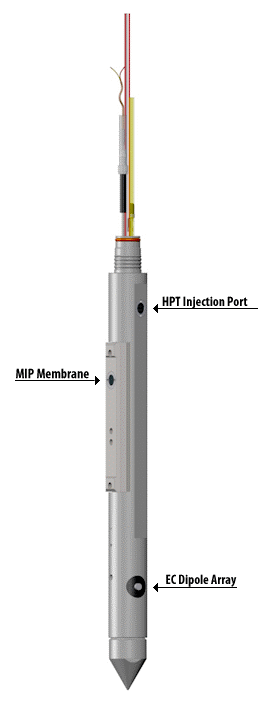

The MiHPT is the combination of the MIP with the HPT.  This direct-sensing probe detects volatile contaminants with the MIP, measures soil electrical conductivity (EC) with a standard (MIP) dipole array, and measures HPT injection pressure using the same down-hole transducer as the Geoprobe® stand-alone HPT system.  In post-processing the log data with Geoprobe® DI Viewer software, the user is able to estimate hydraulic conductivity (K) and water table elevation, as well as prepare graphical outputs of the log data.

S2C2 provides High Resolution Site Characterization services includes: Membrane Interface Probe, Hydraulic Profiling Tool, MiHPT and Data Visualization.
For more information contact Matthew Ruf at mruf@s2c2inc.com
